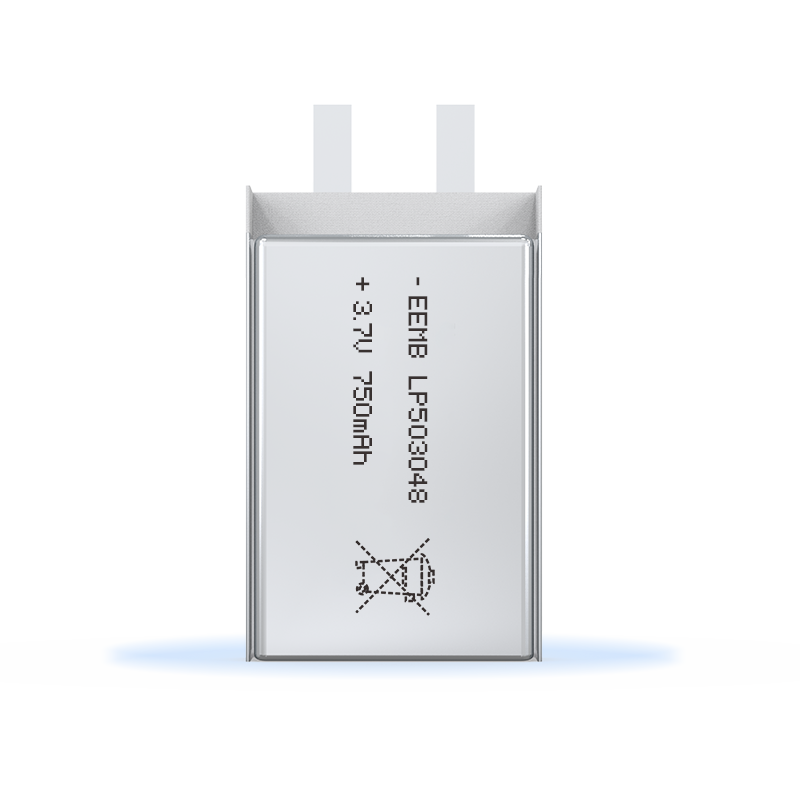

Rechargeable Lithium Polymer Battery Cell 503048 3.7V 750mAh Li-ion Polymer Battery

Datasheet Inquiry Chat

Model: LP503048
Chemistry: Lithium Polymer
Description: Rechargeable (Secondary) Lithium Polymer Battery Cell 3.7V 750mAh size 503048 Lipo Lithium ion Battery LP503048 Bare Cell with Solder Tab

Customizing Battery to Your Specification

Product Detail

Product Categories Bare Cell
Location China,Europe,USA
ASIN
Battery Model LP503048
Battery Chemistry Lithium Polymer
Series / Type LP Lithium Polymer-Standard
Nominal Voltage 3.7 V
Nominal Capacity 750 mAh
Rechargeable/Non-Rechargeable Rechargeable (Secondary)
Temperature Range -20℃ ~ +60℃
Battery cell size 503048
Dimension 1.20" W x 1.97" L x 0.21" H(30.5mm X 50.00mm X 5.3mm)
Weight (g) 15 g
Termination Style Solder Tab
Compliance UN38.3 / IEC62133

Other Information

Li-polymer battery LP503048

3.7V;

Typical capacity: 750mAh,

Min capacity: 700mAh;

Weight: approximate 15.00 g;

Size: 30.5mm X 50.00mm X 5.30mm (WxLxH)


SUITABLE for Bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi enabled smart home systems, PDA and digital  cameras, GPS, monitoring units, e-books, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse
