LP803450-Standard Type Lithium Polymer Battery
LP803450-Standard Type Lithium Polymer Battery
LP803450-Standard Type Lithium Polymer Battery
LP803450-Standard Type Lithium Polymer Battery

LP803450-Standard Type Lithium Polymer Battery

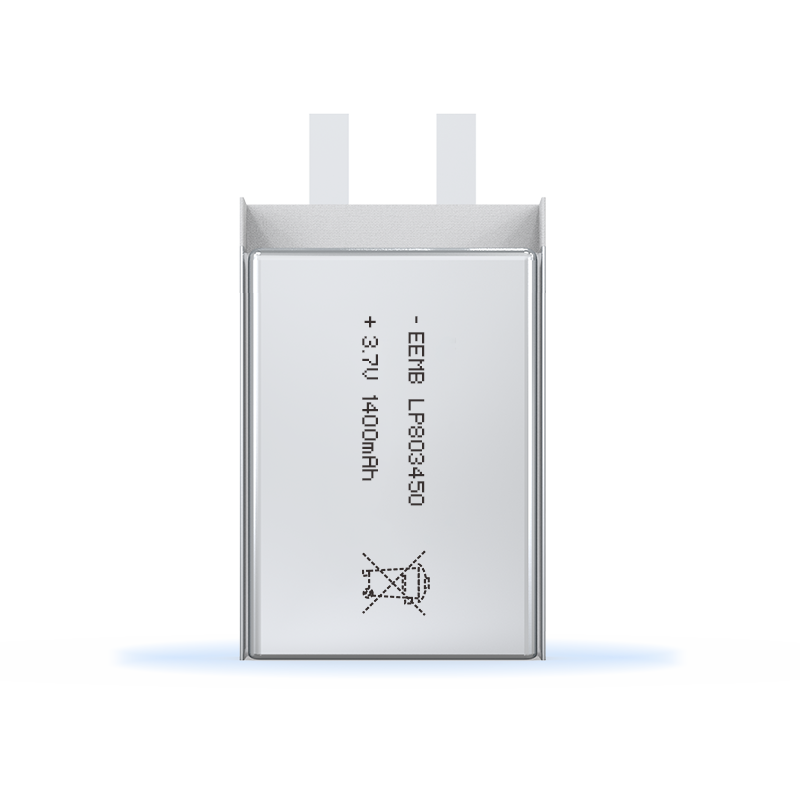

Rechargeable Lithium Polymer Battery Cell LP803450 3.7V 1400mAh Li-ion Polymer Battery

Datasheet Inquiry Chat

Model: LP803450
Chemistry: Lithium Polymer
Description: Rechargeable (Secondary) Lithium Polymer Battery Cell 3.7V 1400mAh size 803450 Lipo Lithium ion Battery LP803450 Bare Cell with Solder Tab

Customizing Battery to Your Specification

Product Detail

Product Categories Bare Cell
Location China,Europe,USA
ASIN
Battery Model LP803450
Battery Chemistry Lithium Polymer
Series / Type LP Lithium Polymer-Standard
Nominal Voltage 3.7 V
Nominal Capacity 1400 mAh
Rechargeable/Non-Rechargeable Rechargeable (Secondary)
Temperature Range -20℃ ~ +60℃
Battery cell size 803450
Dimension 1.36" W x 2.05" L x 0.33" H(34.5mm X 52.00mm X 8.30mm)
Weight (g) 28 g
Termination Style Solder Tab
Compliance UL1642 / UN38.3

Other Information

Li-polymer battery LP803450

3.7V;

Typical capacity: 1400mAh,

Min capacity:1300mAh;

Weight: approximate 28.00 g;

Size: 34.5mm X 52.00mm X 8.30mm (WxLxH)


SUITABLE for Bluetooth speaker, dash cam, keyboard and mouse, Wi-Fi enabled smart home systems, PDA and digital  cameras, GPS, monitoring units, e-books, tracking devices, sleep management equipment, blood oxygen tracking equipment, pulse
