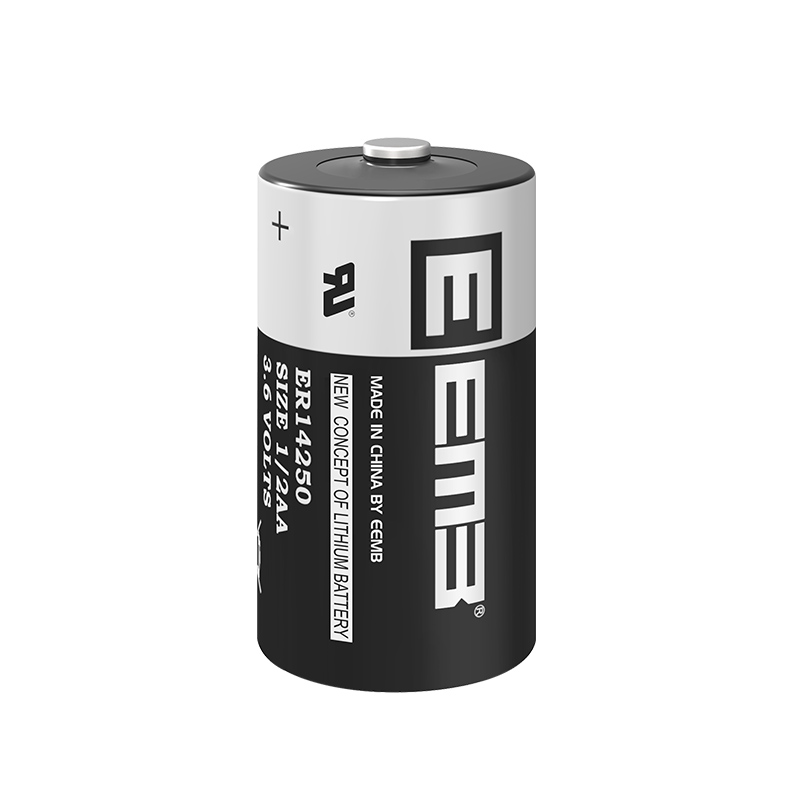

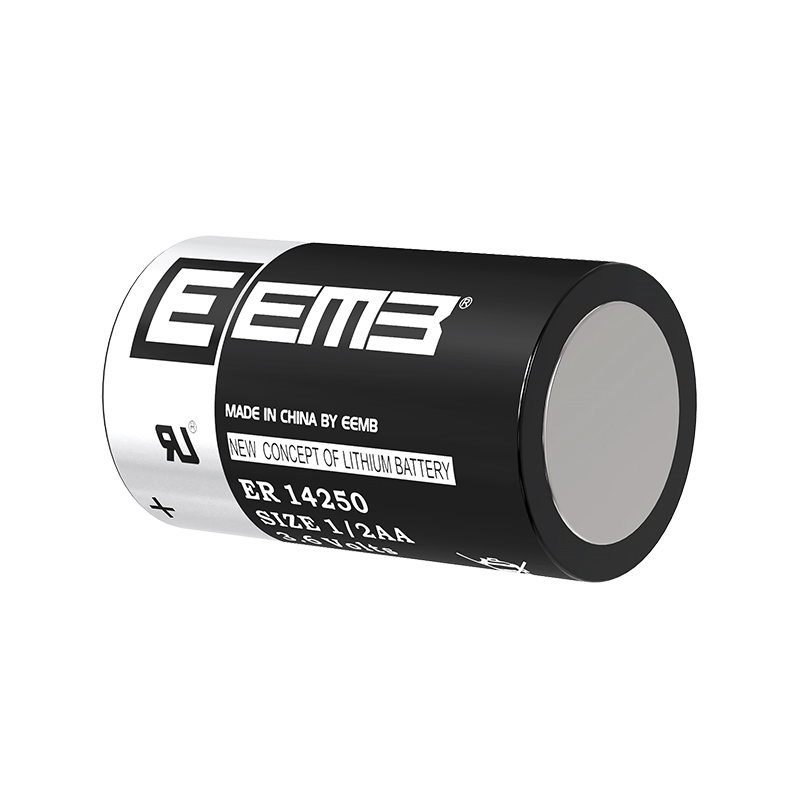

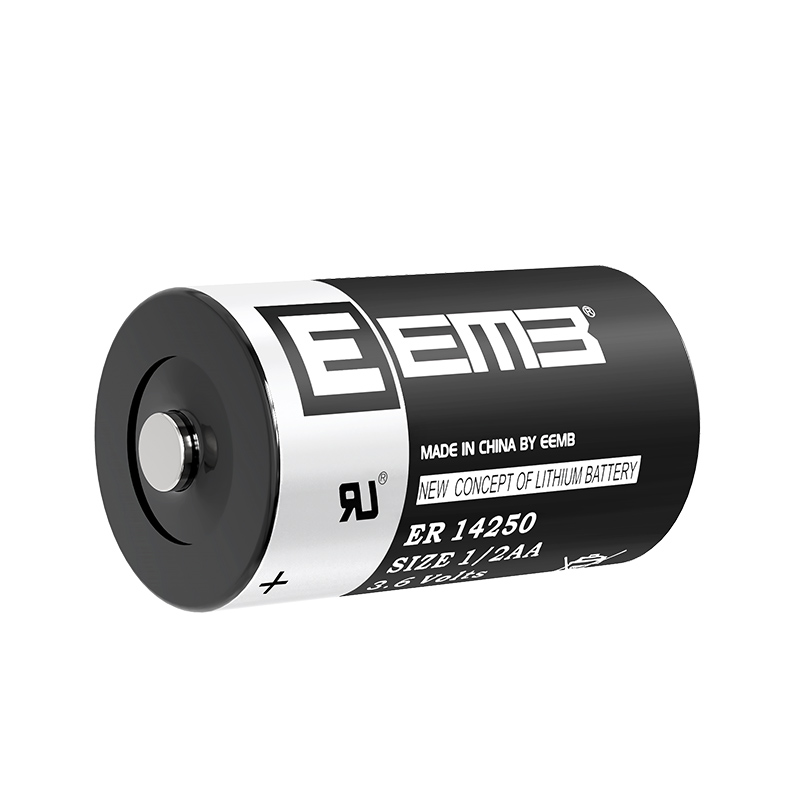

ER14250-Bobbin Type Lithium Thionyl Chloride Battery
| Model: | ER14250 |
| Chemistry: | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Description: | Cylindrical Cell 1/2 AA size Bobbin Type Li-SoCl2 Bobbin Type Lithium Thionyl Chloride 3.6V Battery ER14250 Non-rechargeable (Primary) 1200 mAh |
Customizing Battery to Your Specification
Product Detail
| Product Categories | Bare Cell |
|---|---|
| Location | China,Europe,USA |
| ASIN | B08FC56W9V |
| Battery Model | ER14250 |
| Battery Chemistry | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Series / Type | ER Li-SoCl2-Energy Bobbin |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 1200 mAh |
| Rechargeable/Non-Rechargeable | Non-Rechargeable (Primary) |
|---|---|
| Temperature Range | -55℃ ~ +85℃ |
| Battery cell size | 1/2 AA |
| Dimension | 0.55" Dia x 1.00 " H (14.5mm x 25.5mm) |
| Weight (g) | 11 g |
| Termination Style | Button Top (extending) |
| Compliance | UL1642 / UN38.3 / IEC62133 |
Other Information
[Value]:
Lithium Thionyl Chloride (Li-SOCl2) Bobbin Type
Model:ER14250;
Rated voltage : 3.6V,
Cell size: 1/2 AA,
Body dimensions: Ø14.5x25.2mm,
Capacity: 1.2 Ah,
Battery features: non-rechargeable,
Maximum current: 20mA, Continuous
[Replaces]:
LS14250, ER3, XL-050F, ER3SR#11, ER3SR#12, LS14250MLB, ST-A1-XL-050F, 64967, 939001360, 9936620G01, B9604T, ER14250/W
[Compatible]:
Ideal for Alarm System/PLC Memory Backup Power/CNC System/Servo Motors/Machine Tools/Instruments/Special Electronic Equipment/Intrusion Sensors/Invisible Fencing/Smart Utility Metering/Emergency Backup/Gas/Water/Electric Meter/Toll RFID/IoT/Movemet Sensor Monitor/Home Security System/Alarm System/PLC/Fleet Monitoring/Data Collection./.AMR Add-ons/Smoke Alarms/Telematic Devices/Medical Devices
