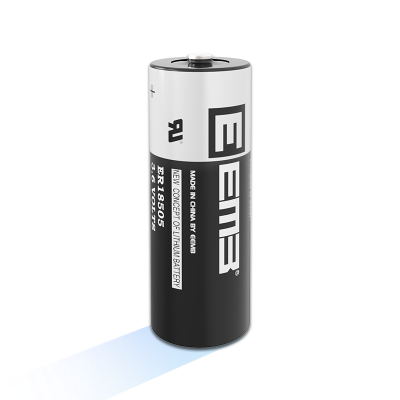

ER18505-Bobbin Type Lithium Thionyl Chloride Battery
Cylindrical Cell Batteries 3.6V Bobbin Type Thionyl Chloride Lithium Battery,18505 size
| Model: | ER18505 |
| Chemistry: | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Description: | Cylindrical Cell D size Bobbin Type Li-SoCl2 Lithium Thionyl Chloride 3.6V Battery ER18505 Non-rechargeable (Primary) 4100 mAh |
Customizing Battery to Your Specification
Product Detail
| Product Categories | Bare Cell |
|---|---|
| Location | China,Europe,USA |
| ASIN | B07TYKKFNV |
| Battery Model | ER18505 |
| Battery Chemistry | Lithium Thionyl Chloride (Li-SoCl2) Battery |
| Series / Type | ER Li-SoCl2-Energy Bobbin |
| Nominal Voltage | 3.6 V |
| Nominal Capacity | 4100 mAh |
| Rechargeable/Non-Rechargeable | Non-Rechargeable (Primary) |
|---|---|
| Temperature Range | -55℃ ~ +85℃ |
| Battery cell size | / |
| Dimension | 0.73" Dia x 1.988" H (18.5mm x 50.5mm) |
| Weight (g) | 29 g |
| Termination Style | Button Top (extending) |
| Compliance | UL1642 / UN38.3 |
Other Information
[Value]:
ER18505, 3.6V/ 4.1Ah Li-SoCl2 Lithium Thionyl Chloride Battery Bobbin Type
Non-RechargeableNorminal Capacity: 4100mAh
Norminal Voltage: 3.6 V
Max Continuous Discharge Current: 80mA
Weight: 29 g
Diameter: 18.5 mm
Height: 50.5mm
Operating Temperature: -55 ° C ~ +85 ° C
Shelf Life: 10 years
Self-discharger Rate: ≤1%
[Replaces]:
LS17500, SB-A01, ER17/50, XL-100F etc.
[Compatible]:
Ideal For Alarm System/PLC Memory Backup Power/CNC System/Servo Motors/Machine Tools/Instruments/Special Electronic Equipment/Intrusion Sensors/Invisible Fencing/Smart Utility Metering/Emergency Backup/Gas/Water/Electric Meter/Toll RFID/IoT/Movemet Sensor Monitor/Home Security System/Alarm System/PLC/Fleet Monitoring/Data Collection./.AMR Add-ons/Smoke Alarms/Taximeter
[Single Use]:
These batteries are NOT rechargeable.
